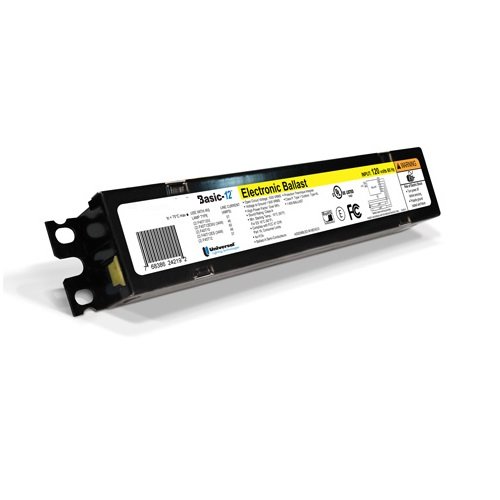

Universal Triad B132IUNVHP-N

Description

Universal Triad B132IUNVHP-N000I 32W 120-277V 1 Lamp T8 High Frequency Electronic Ballast   Operates the Following Fluorescent Lamps:  (1) F17T8/ECO 24in Fluorescent Lamp (1) F25T8/ECO 36in Fluorescent Lamp (1) F32T8/25W 48in Energy Saving F32T8 25W Lamps (1) F28T8/28W 48in Energy Saving F32T8 28W Lamps (1) F32T8/WM 48in Energy Saving F32T8 30W Lamps (1) F32T8 (48in FO32/ECO 32W Standard Lamps) (1) FO40 60in Fluorescent T8 Lamp (1) F25T12 36in Fluorescent T12 Lamp Also Suitable For Equivalent U-Bend Fluorescent T8 Lamps Additional Information: High performance electronic ballast for all general fluorescent applications Instant start electronic ballast for long lamp starting cycles and low initial cost Multi-Voltage Technology handles voltage from 120 to 277V Light-weight, Low Profile Housing (Dim:9.5”L x 1.7”W x 1.18”H) Parallel Circuitry: keeps remaining lamps lit if one or more go out Line Voltage: 108vac – 305vac, 50/60Hz Manufactured in North America  Meets ANSI Standard C82.11-1993 Normal Ballast Factor < 10% THD Sound Rating A (20-24 decibels) RoHs Compliant UL Type 1 Outdoor Cross Reference: GE-132-MV-N Sylvania QTP1X32T8/UNV ISN-SC Philips Advance ICN-1P32-N Howard EP1/32IS/120-277 Halco Prolume EP132IS/MV/SL Keystone KTEB-132LBF-UV-TP-PIC
