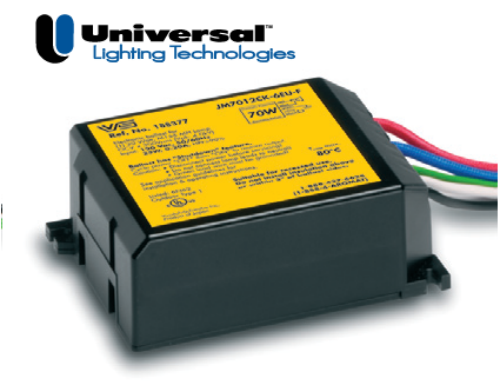

Universal M7012CK-6EU-J

Description

Vossloh Schwabe M701227CK6EUJ 120-277V 70W Metal Halide Electronic Stud Mount & Bottom lead exit Micro Case Ballast  Operates  (1) 70W Ceramic Metal Halide Lamp Product Details Resonance Start RoHS Compliant Active power factor correction Ansi Code M98,M139, or M143 Microprocessor controlled (J) Stud mount (bottom lead exit) Universal Order Code 188628.02 Voltage : 120-277V  +/-10%, 50/60Hz DIM: (L) 3.52in (W) 3in x (H) 1.52in 5-Lead Wires (Black, White, Green,Blue, Red) Spec Sheet   Additional Information Energy Efficient Greater than 20% increase in efficiency Lowers lighting operation costs Full Light Output Provides same light levels as magnetic ballasts being replaced  Quiet Operation Significantly quieter than magnetic ballasts  High Frequency Operation No lamp flickering  Light Weight – Low Profile Case Simplifies transportation & installation Less interference with ballast channel cover during replacement Slimline Ballasts Feature Parallel Lamp Operation When one lamp fails, other lamp remains lit Instant start electronic ballast for long lamp starting cycles and low initial cost RoHs Compliant UL Type 1 Outdoor   Performance:• EOL Protection• Meets ANSI Standard C82.14-2006• Meets ANSI Standard C62.41-1991• Meets FCC Part 18C for EMI & RFI (non-consumer)Safety:• No PCBs• Thermal Protection• C/UR/US recognized component  Each lamp’s lead wires must be run in a separate minimum 1/2″ ID conduit from the inputleads to achive good EMI performance and maximum remote capabilities. Individual ,unbundled lead wires must be used for extension wiring using wire types SF-2 or SFF-2or equivalent. Power cords and MC cables are not acceptable extension wiring methods.
