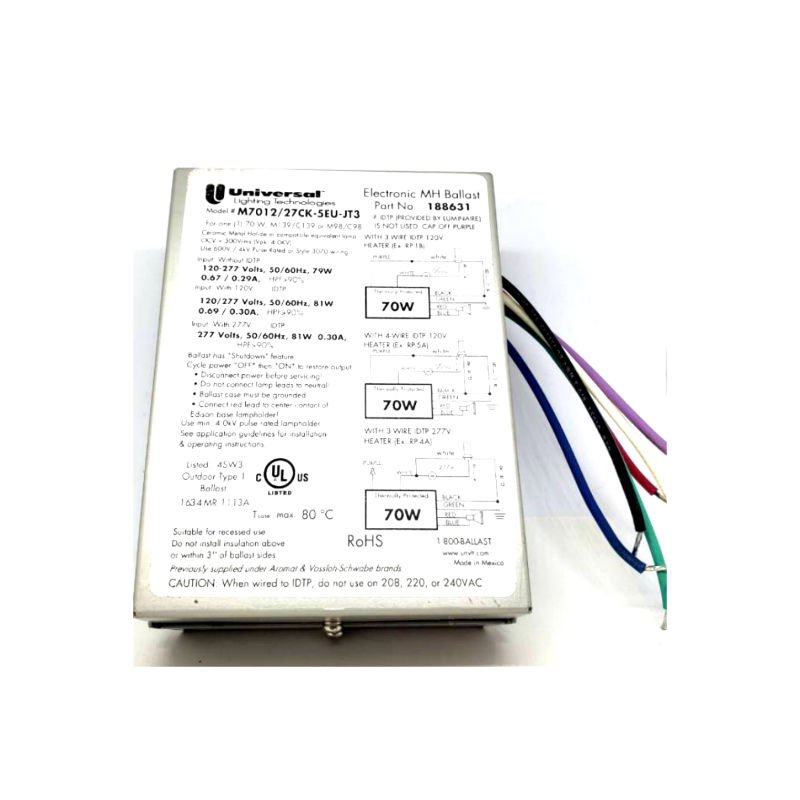

Universal M7012-27CK-5EU-JT3

Description

Universal Lighting Technologies VS #188631.02 M701227CK5EUJT3 120-277V Low Frequency  4-wire IDTP’s With Bottom Leads & Studs For (1) 70W M98-139-143  Lamp Product Details RoHS Compliant Microprocessor controlled Ballast Order Code: 188631.02 Voltage : 120/277vac, +/-10%, 50/60Hz Compatible with 3 or 4 wire IDTPs DIM: (L) 5.02in (W) 3.62in x (H)1.57in Ansi Code M143/C143 ,M139/C139 or M98/C98 Spec Sheet Additional Information Energy Efficient Greater than 20% increase in efficiency Lowers lighting operation costs Full Light Output Provides same light levels as magnetic ballasts being replaced  Quiet Operation Significantly quieter than magnetic ballasts  High Frequency Operation No lamp flickering  Light Weight – Low Profile Case Simplifies transportation & installation Less interference with ballast channel cover during replacement Slimline Ballasts Feature Parallel Lamp Operation When one lamp fails, other lamp remains lit Instant start electronic ballast for long lamp starting cycles and low initial cost UL Type 1 Outdoor Each lamp’s lead wires must be run in a separate minimum 1/2″ ID conduit from the input leads to achive good EMI performance and maximum remote capabilities. Individual , unbundled lead wires must be used for extension wiring using wire types SF-2 or SFF-2 or equivalent. Power cords and MC cables are not acceptable extension wiring methods
