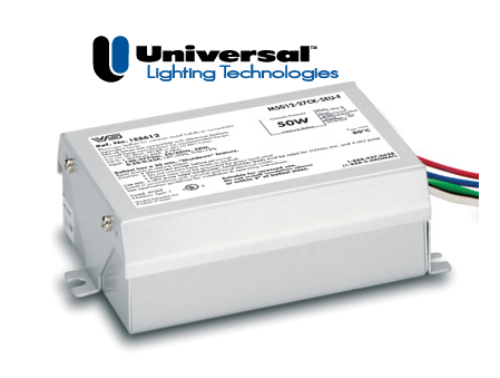

Universal M5012-27CK-5EU-F

Description

Universal Lighting 50W 120-277V Metal Halide M148 Electronic Feet Mount eHid Ballast (1) 50Ceramic Metal Halide Lamp Ansi Code M148 or M110 Voltage : 120-277V, +/-10%, 50/60Hz Resonance Start Active power factor correction Microprocessor controlled EOL Protection DIM: (L) 5.51in (W) 3.62in x (H) 1.57in Feet mount (Side lead exit) Universal Order Code 188612.02 5-Lead Wires( Black, White, Green,Blue, Red) RoHS Compliant Spec Sheet Additional Information Energy Efficient Greater than 20% increase in efficiency Lowers lighting operation costs Full Light Output Provides same light levels as magnetic ballasts being replaced  Quiet Operation Significantly quieter than magnetic ballasts  High Frequency Operation No lamp flickering  Light Weight – Low Profile Case Simplifies transportation & installation Less interference with ballast channel cover during replacement Slimline Ballasts Feature Parallel Lamp Operation When one lamp fails, other lamp remains lit Instant start electronic ballast for long lamp starting cycles and low initial cost RoHs Compliant UL Type 1 Outdoor Cross Reference Aromat M5012CK-5EU-F GEMH39-MSF-120 Hatch MC50-1-F-UNNU Philips Advance IMH-50-A-LF Sylvania QTP1x50MH UNV SQ F Vossloh Schwabe M5012-27CK-5EU-F
