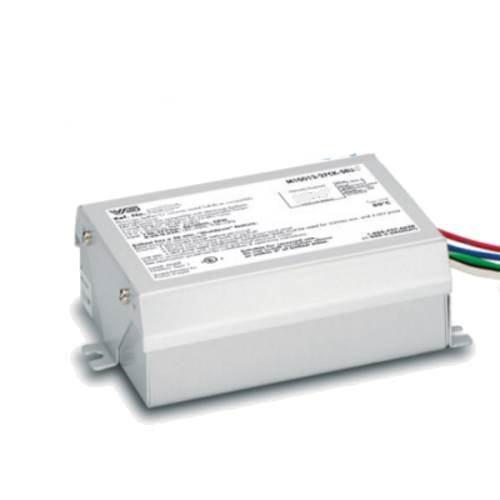

Universal M10012/27CK-5EU-JT3

Description

Vossloh Schwabe M1001227CK5EUJT3 Multi-volt IDTP 100W Metal Halide Electronic J Stud Mount Ballast & Bottom lead exit Use To Operate (1) 100W M90,M140,M191 Ceramic Metal Halide Lamp Product Details Resonance Start RoHS Compliant Order code: 18863-3  Active power factor correction Microprocessor controlled (J) Stub mount (bottom lead exit) Compatible with 3 or 4 wire IDTPs Extra-long 36” Wire lead lengths Universal Order Code 188633.02 Ansi Code M90,M140,M191 Voltage : 120-277V  +/-10%, 50/60Hz DIM: (L) 5.02in (W) 3.62in x (H)1.57in IDTP “tap” Function: Provides 120V to heaters of IDTPs.  Operation with IDTP is now universal voltage rated for 120-277V. Can be operated as normal HID ballast with tap lead capped-off for entire 120V to 277V input voltage range 5-Lead Wires (Black, White, Green,Blue, Red) Spec Sheet   Additional Information Energy Efficient Greater than 20% increase in efficiency Lowers lighting operation costs Full Light Output Provides same light levels as magnetic ballasts being replaced  Quiet Operation Significantly quieter than magnetic ballasts  High Frequency Operation No lamp flickering  Light Weight – Low Profile Case Simplifies transportation & installation Less interference with ballast channel cover during replacement Slimline Ballasts Feature Parallel Lamp Operation When one lamp fails, other lamp remains lit Instant start electronic ballast for long lamp starting cycles and low initial cost RoHs Compliant UL Type 1 Outdoor   Performance:• EOL Protection• Meets ANSI Standard C82.14-2006• Meets ANSI Standard C62.41-1991• Meets FCC Part 18C for EMI & RFI (non-consumer)Safety:• No PCBs• Thermal Protection• C/UR/US recognized component  Each lamp’s lead wires must be run in a separate minimum 1/2″ ID conduit from the inputleads to achive good EMI performance and maximum remote capabilities. Individual ,unbundled lead wires must be used for extension wiring using wire types SF-2 or SFF-2or equivalent. Power cords and MC cables are not acceptable extension wiring methods.
