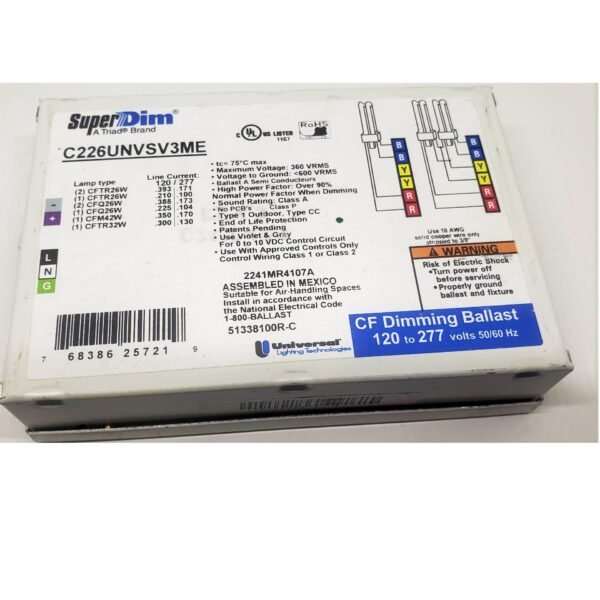

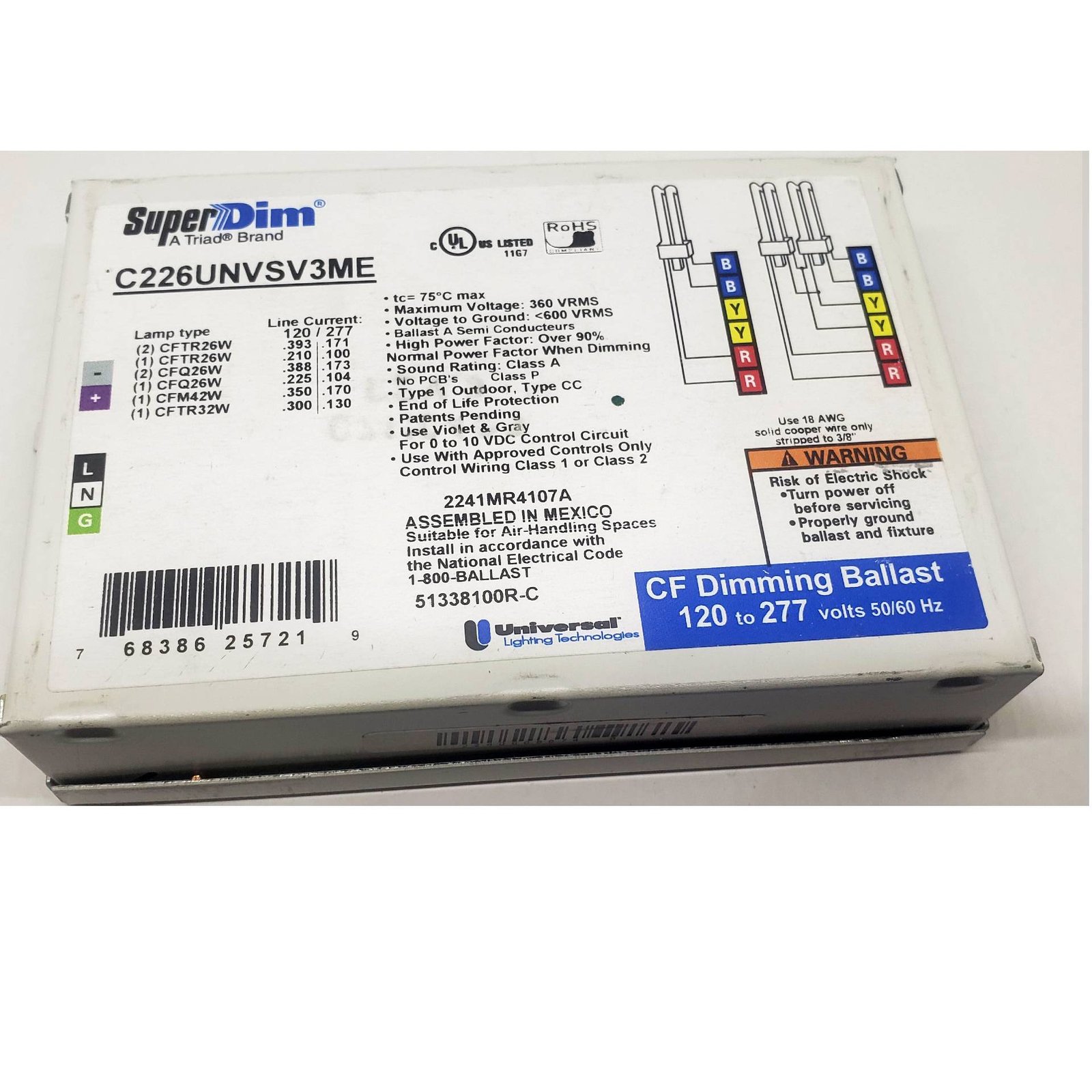

Universal C226UNVSV3ME

Description

Universal Lighting Super-Dim  C226UNVSV3ME 1-2 Lamp 26W-42W CF Dimming Ballast Operates the Following Lamps: (1-2) CFTR26W-GX24q-3 Base (Philips PL-T 26W/4P, GE F26TBX/4P, Sylvania CF26DT/E) (1-2)CFQ26W-G24q-3 Base (Philips PL-C 26W/4P, GE F26DBX/4P, Sylvania CF26DD/E) (1-2) CFTR32W-GX24q-3 Base (Philips PL-T 32/W GE F26TBX/4P, Sylvania CF26DT/E) (1-2) CFTR42W/GX24q (PL-T 42W/4P, GE F42TBX/4P, Sylvania CF42DT/E)  Product Details: DIM: 4.94in x 3in x 1in  ME = Multi-Ended *Multiple Mounting Connections* Universal input voltage (120 – 277V 50/60Hz) Line voltage protection for control circuit Dimming range: 100% to 3% light output Sound rating: Class A Remote mounting: 18″ Line voltage protection for control circuit Dimming Control Specifications: 10 to 0 vDC Voltage Control 10v = maximum output  Can be wired as Class 1 or Class 2 Circuit 0v = minimum output Ballast will source a maximum of 250uA for control needs Built-in line voltage protection circuit: Deep-dimming condition when line voltage is applied to control leads
