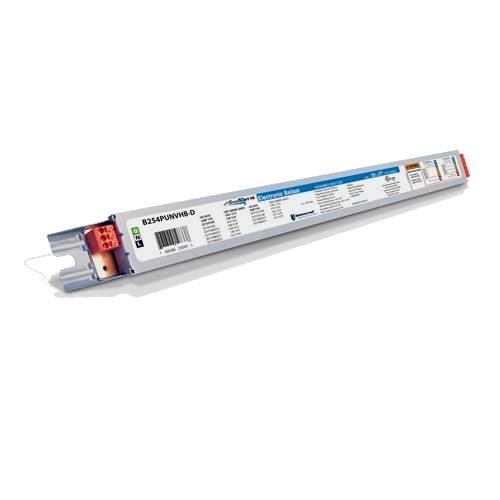

Universal B254PUNVHB-D

Description

Universal Triad Accustart5-HB  B254PUNVHBD 90°C High Temp 2-Lamp 54WT5HO 120/277V 50-60HZ  Programmed Rapid Start Electronic Ballast Operates the Following Lamps: (1-2) F54T5HO (F54T5HO/Alto,FP54HO/ECO,FQ 49W/T5,F54WT5/HO/ECO) (1-2) F54T5ES 49W (F54T5/49W/Alto ,FP54/50W,FQ 49W,F49WT5/HO/ECO)  (1-2) FT55W/2G11(PL-L 55W/4P, FT55DL/ECO, Dulux L 55W/4P) (1-2) FT50W/2G11(PL-L 50W/4P, FT50DL/ECO, GE F50BX/4P) (1-2) FT36W/2G11(PL-L 36W/4P, FT36DL/ECO, Dulux L 36W/4P) (1) FC12T5/HO 55W (TL5C 55W, FC 55W)   Additional Details Programmed Rapid Start Series Lamp Operation Active Power Factor Correction Auto Reset after Lamp Replacement End of Lamp Life Shutdown Circuitry Light-weight, Low Profile Housing (Dim:16.88”L x 1.18”W x 1.00”H) Line Voltage: 120 – 277 vac, ±10%, 50/60Hz Manufactured in North America  Meets ANSI Standard C82.11-1993 Normal Ballast Factor < 10% THD Sound Rating A (20-24 decibels) Min. Temp 0° F, -18° C MAX . Temp 194° F, -90° C UL Type 1 Outdoor
