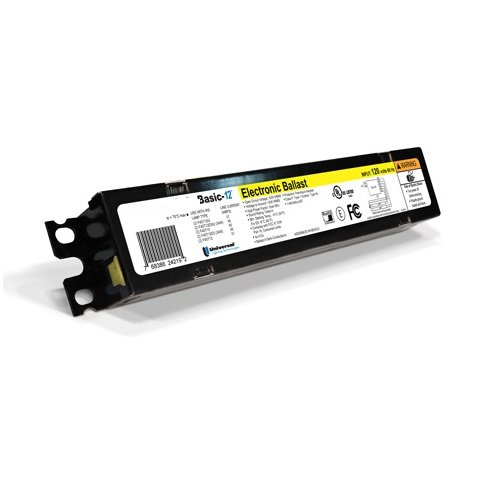

Universal B132I120RH-A

Description

Universal Triad B132I120RH-A000I 1-lamp F32T8 120-277V T8 Rapid Start Electronic Ballast Operates the Following Fluorescent Lamps:  (1) F17T8/ECO  (1) F25T8/ECO  (1) F32T8  (1) F40T8  (1) F25T12   Also Suitable For Equivalent U-Bend Fluorescent T8 Lamps Additional Information: High performance electronic ballast for all general fluorescent applications Instant start electronic ballast for long lamp starting cycles and low initial cost Multi-Voltage Technology handles voltage from 120 to 277V Light-weight, Low Profile Housing (Dim:9.5”L x 1.7”W x 1.18”H) Parallel Circuitry: keeps remaining lamps lit if one or more go out Line Voltage: 108vac – 305vac, 50/60Hz Manufactured in North America  Meets ANSI Standard C82.11-1993 Normal Ballast Factor < 10% THD Sound Rating A (20-24 decibels) RoHs Compliant UL Type 1 Outdoor
