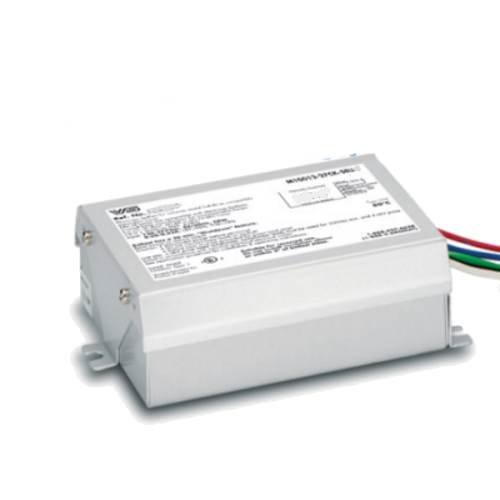

Universal 188168 M10012-27CK-5EU

Description

Universal Vossloh Schwabe M1001227CK5EU Multi-volt 100W Metal Halide Electronic No Feet Mount Ballast & Side lead exit Use To Operate (1) 100W M90,M140,M191 Ceramic Metal Halide Lamp 04014364303413; Product Details Resonance Start RoHS Compliant Active power factor correction Ansi Code M90,M140,M191 Microprocessor controlled No Feet Mount (Side lead exit) Extra-long 36” Wire lead lengths Universal Order Code 188168.02 Voltage : 120-277V  +/-10%, 50/60Hz DIM: (L) 5.26in (W) 3.62in x (H) 1.57in 5-Lead Wires (Black, White, Green,Blue, Red) Spec Sheet   Additional Information Energy Efficient Greater than 20% increase in efficiency Lowers lighting operation costs Full Light Output Quiet Operation Significantly quieter than magnetic ballasts  High Frequency Operation No lamp flickering  Light Weight – Low Profile Case Simplifies transportation & installation Slimline Ballasts Feature Parallel Lamp Operation When one lamp fails, other lamp remains lit Less interference with ballast channel cover during replacement Provides same light levels as magnetic ballasts being replaced Instant start electronic ballast for long lamp starting cycles and low initial cost RoHs Compliant UL Type 1 Outdoor   Performance:• EOL Protection• Meets ANSI Standard C82.14-2006• Meets ANSI Standard C62.41-1991• Meets FCC Part 18C for EMI & RFI (non-consumer)Safety:• No PCBs• Thermal Protection• C/UR/US recognized component  Each lamp’s lead wires must be run in a separate minimum 1/2″ ID conduit from the inputleads to achive good EMI performance and maximum remote capabilities. Individual ,unbundled lead wires must be used for extension wiring using wire types SF-2 or SFF-2or equivalent. Power cords and MC cables are not acceptable extension wiring methods.   Cross Reference Aromat M10012/27CK-5EU NAIS: M10012/27CK-5EU VS M10012/27CK-5EU Hatch MC100-1-F-UNNU
