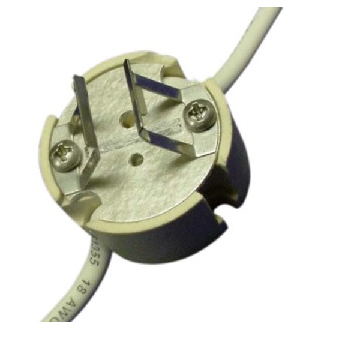

Sylvania 69367 GY9.5 24IN/18GA/UL3239

Description

  Sylvania Pulse Rated 1000V 5kV 10a Replacement Steatlite Ceramic GY9.5 Socket With 24in Wires Additional Details Rated Max. voltage: 1000V Maximum Amperage 10amp Max.Operating Temp  200° C Qualifications UL Listed Body Material Steatite Contact Material Silver Plated Copper Alloy Wire Leads 24IN Alloy AWG 18 Replaces Sylvania F512025 Wire Type UL 3239 Order Code 69372 Spec Sheet   Osram Sylvania High quality, long lasting lampholders specifically designed for high temperature lamps • Variety of wire types, lead wire lengths and gauges • Majority of types incorporate a two-piece patented contact system for superior mating with lamp contacts: • Solid nickel contacts and high temperature stainless steel backer springs • Contacts “float” inside ceramic lampholder to maximize dimensional tolerances (spacing and diameter) • Ceramic housing provides superior electrical and thermal insulation • Many lampholders for metal halide (discharge) lamps are Pulse Rated for Hot Re-Strike • OSRAM provides UL (Underwriters Laboratories) Recognized and CSA (Canadian Standards Association) Certifi ed lampholders
