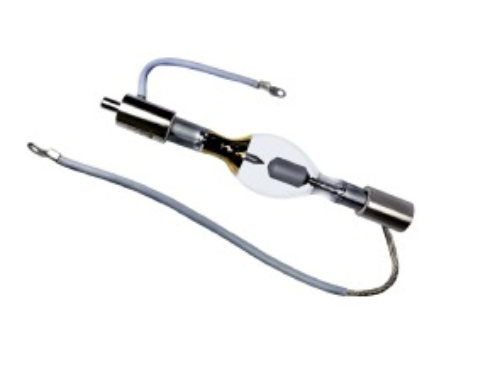

Sylvania 69344 HBO 2700 W/CIL

Description

  Sylvania HBO 2700 Watt 26V Mercury Short Arc Double Ended T70 Clear Lamp for Semiconductor Applications in Canon FPA-3000 i5++ Steppers Product Details Wattage: 2700 Voltage: 26 Length: 309mm  Current Type: DC Current: 110 Amps Lamp Efficacy: n/a (LPW) Lumens: n/a Candle Power: n/a Gas: Carbon Vertical, Anode Up Burn Position UPC Code: 04613569344 Average Rated Life: 1500hrs Spec Sheet   Additional Details Sylvania Mercury Short Arc Lamp • HBO lamps are a perfect point source of light providing radiant power in both the UV and visible range. • 30% increase in luminous flux in the 450-500 nanometer wavelength range. • Optimized arc stability. • Extended service life. Applications • Semiconductors WARNINGThis lamp emits a high level of UV radiation and operates at high internal pressure with high luminance. It may only be operated in enclosed lamp casings. Always use the safety boxes supplied when handling this lamp. Disposal When disposing of spent lamps, always consult federal, state, local and provincial hazardous waste disposal rules and regulations to ensure proper disposal.
