Description

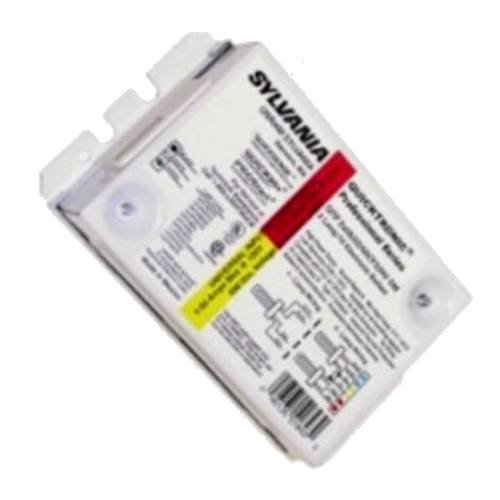

Osram Sylvania Quiktronic QTP 2x263242CFUNVPN #51863 Quicktronic Prostart 2-Lamp 26W-32W-42W T4 CFL Programmed Rapid Start Electronic Pem Studs Ballast Without Leads Operates the Following Fluorescent Lamps: (1 or 2) CFTR26W/GX24q3 (Philips PL-T 26W/4P, GE F26TBX/4P, Sylvania CF26DT/E) (1) CFTR32W/GX24q3 (Philips PL-T 32W/4P, GE F32TBX/4P, Sylvania CF32DT/E) (1) CFTR42W/GX24q4 (Philips PL-T 42W/4P, GE F42TBX/4P, Sylvania CF42DT/E) ((1) CFTR57W/GX24q5 (Philips PL-T 57W/4P, GE F57QBX/4P, Sylvania CF57DT/E) ((1) CFTR70W/GX24q56 (Philips PL-T 70W/4P, GE F70QBX/4P, Sylvania CF70DT/E) Doesn’t Include Ballast Kit *Mounting Plate,Wire,Tools* Additional Information 70C Max Case Temperature 75C Max Case Temperature UL Listed Class P, Type 1 Outdoor Ground ballast case Install in accordance with National Electric Codes Complies with FCC 47 CFR Part 18, Non-Consumer Class A Sound Rating. Input Frequency: 50/60Hz. Remote Mounting up to 19 feet (keep red wires short for 1&2 lamp). Minimum Starting Temperature: -4F/-20C. Remote Mounting up to 19 feet (keep red wires short for 1&2 lamp models). ANSI C62.41 cat. B3 Transient Protection. Remote mounting – Typically 6ft with suitable ground plane, but varies by model and application. Contact ECS Application Engineering for information on longer applications.
