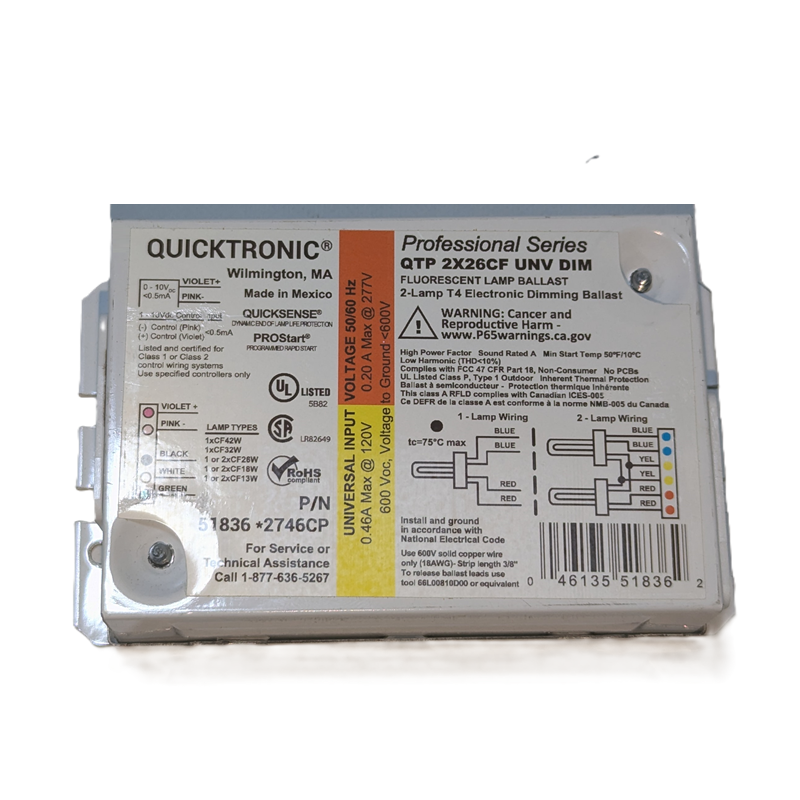

Sylvania 51836 QTP 2x26CF/UNV DIM-DM

Description

Sylvania Quicktronic Professional Series 2-Lamp 26W CFL 120/277V Helios Dimmable Compact Fluorescent Ballast   Operates the Following Fluorescent Lamps: ( 1 -2) 13W DD/E, DT/E Compact Fluorescent Lamp (1-2) 18W DD/E, DT/E Compact Fluorescent Lamp (1-2) 26W DD/E, DT/E Compact Fluorescent Lamp (1) 32W DT/E Compact Fluorescent Lamp (1) 42W DT/E Compact Fluorescent Lamp Ballast Factor: 1.00 Spec Sheet Additional Information: DIM: (L) 4.95in x (H) 1.35in x (W) 2.93in Universal input voltage (120-277V) Dual entry, color coded connectors PROStart® program rapid start ballast QUICKSENSE® ballast technology High power factor Low harmonic distortion Small size and lightweight Metal enclosure UL, CSA, FCC QUICK 60+ warranty 100%-3% dimming range 0-10V control Anti-flash circuitry – turns on in dimmed mode RoHS compliant Lead-free solder and manufacturing process SYLVANIA QUICKTRONIC HELIOS CF dual entry dimming ballasts operate DULUX® D/E and T/E lamps with full lumen output and optimal system performance over a wide dimming range (100% to 3%). This ballast features one mounting style of low profile, lightweight enclosures to provide simple assembly for any fixture application. Universal input voltage (120–277V) and multi-lamp multi-watt capability allow for fewer SKUs to support a wide range of applications. Dual entry, color coded, wire trap connectors located on the side and bottom allow for increased mounting flexibility with one ballast
