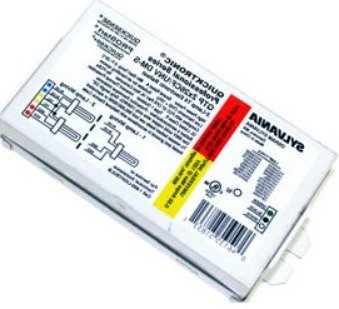

Sylvania 51823 QTP1/2x18CF/UNV DM

Description

Sylvania 51823 Prostart Quicktronic QTP 2X18CFUNV  120-277V 2-Lamp Compact Fluorescent Ballast Operates the Following Fluorescent Lamps: (1 or 2) CFQ18W/G24q (Philips PL-C18W/4P, GE F18BDX/4P, Sylvania CF18DD/E) (1 or 2) CFTR18W/GX24q (GE F18TBX/4P, Sylvania CF18DT/E) Dual Entry (Bottom & Side Color Coded Entry Connectors) Doesn’t Include Ballast Kit *Mounting Plate,Wire,Tools* Sylvania #51851 QTP1/2x18CF/UNV-KIT Includes Ballast Kit Spec Sheet   QTP1/2x18CF/UNV Replaces the Following Discontinued Ballasts:  #51783 QTP1/2x18CF/UNVQS #51723 QTP1/2x18CF/UNVBS #51753 QTP 1/2x18CF/UNVTS Additional Information: Remote Mounting up to 15 feet for one lamp and up to 6 feet for two lamps Normal Power Factor > 98% Starting Method Programmed Rapid Start UL Listed Class P, Type 1 Outdoor Ground ballast case Install in accordance with National Electric Codes Complies with FCC 47 CFR Part 18, Non-Consumer ANSI 62.41 Cat. A Transient Protection Class A Sound Rating. Voltage Range: ±10% of 120-277V Rated line (108-305V) Minimum Starting Temperature: -4F/-20C. CSA certified. ANSI C82.11 where applicable. N No PCB (Polychlorinated Biphenyl) 75°C Max. Case Temp./80°C Max Case Temp. Cross Reference: Advance Philips ICF-2S18-H1-LD GE GEC218-MVPS Triad C218UNVME Robertson PSM218CQMVW ESI ES-2/1-CFQ-18/10-UNV-C Hatch HC218PS/UV/D Keystone KTEB-218-UV-TP-PSD
