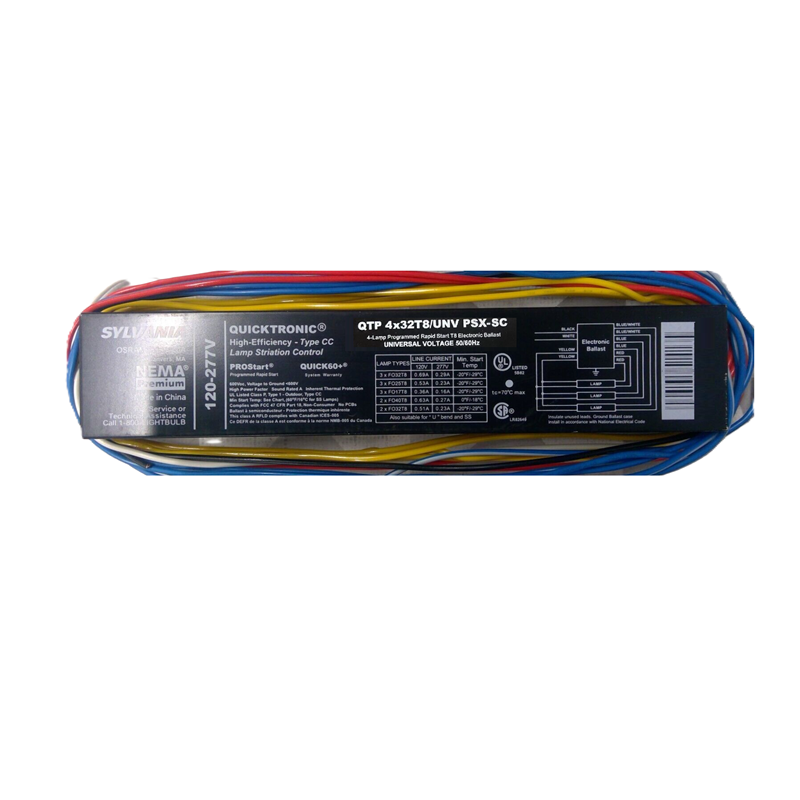

Sylvania 51435 QTP4x32T8/UNV PSX-SC

Description

// Sylvania Quicktronic PROStart 4-Lamp 120-277V Low Ballast Factor 120/277V Fluorescent T8 Programmed Rapid Start Ballast Operates the Following Fluorescent Lamps: This item is discontinued and has been replaced with Sylvania 51438 QHE4x32T8/UNV PSX-SC (3-4) FO17 24in Fluorescent Lamp (3-4) FO25 36in Fluorescent Lamp (3-4) FO32/25W 48in Energy Saving F32T8 25W Lamps (3-4) FO32/28W 48in Energy Saving F32T8 28W Lamps (4) FO30/SS (48in Energy Saving F32T8 30W Advantage Lamps) (3-4) F32T8 (48in FO32/ECO 32W Standard Lamps) (3-4) FBO16,FBO24, FBO29/SS, FBO30/SS, FBO31,FBO32 U-Bend Lamps (3) FO40 60in Fluorescent T8 Lamp   Product Details  70C Max Case Temperature UL Listed Class P, Type 1 Outdoor Ground ballast case Lampholder must be shorted per diagram Install in accordance with National Electric Codes Complies with FCC 47 CFR Part 18, Non-Consumer ANSI 62.41 Cat. A Transient Protection Ballast Factor 0.71 Class A Sound Rating. Input Frequency: 50/60Hz. Complies with UL935 requirements for “Type CC” rating Minimum starting temperature: 60 F / 16 C with SS lamps Minimum starting temperature: -20 F / -29 C CSA certified.   ANSI C82.11 where applicable. NO PCB (Polychlorinated Biphenyl) Remote mounting up to 20 feet Lamp Striation Control (LSC) may minimize Or eliminate lamp striations which can occur in T8 energy savings lamps. Small Can Enclosure Design (Dim:9.47”L x 1.69”W x 1.18”H) Minimum starting temperature: -20 F / -29 C Complies with FCC 47 CFR Part 18, Non-Consumer Normal Ballast Factor < 10% THD Dual Voltage 120-277V 50/60Hz Circuit Type Parallel Meet NEMA Premium Electronic M Ballast Program Requirements and qualify for utility incentives Deliver 30-60% energy savings when D compared to F34T12 magnetically ballasted systems Offer up to 6% (2-5 Watt) energy O savings over standard electronic ballasts Achieve over A 100 (LPW) with OCTRON® 800 XP® SUPERSAVER® lamps Available in: A – Instant Start and PROStart® (Programmed Rapid Start) Bi-level QUICKSTEP® and POWERSENSE® Dimming models  Excellent for The Most Stringent energy codes and sustainability focused projects  Cross Reference: Universal B232IUNVEL-A GE-232-MAX-L/ULTRA Advance IOP-2P32-LW-SC Keystone KTEB-232-UV-IS-L-P
