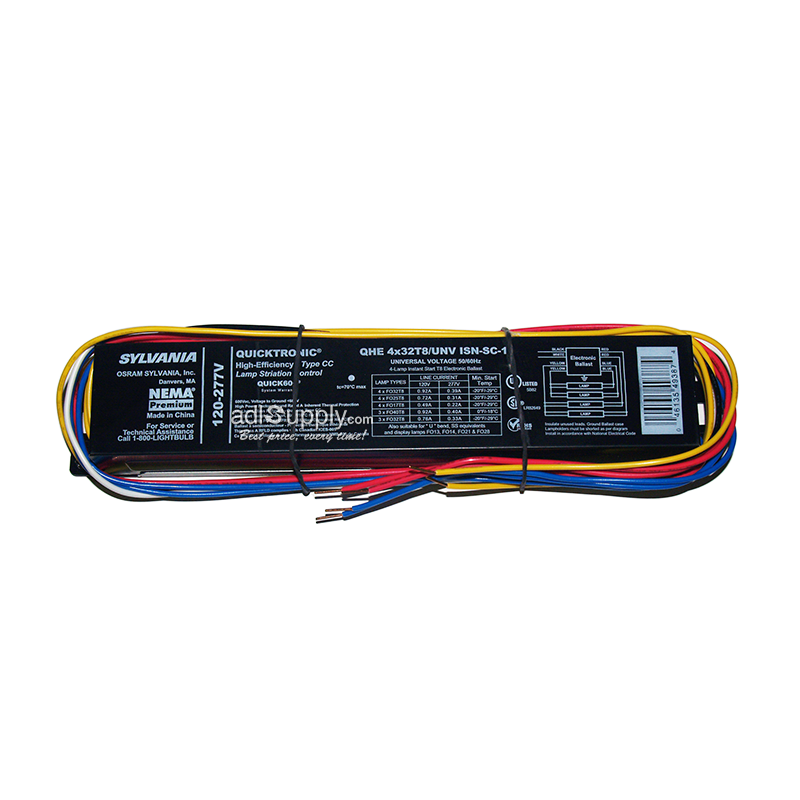

Sylvania 49387 QHE 4x32T8/UNV-ISN-SC-1

Description

 Sylvania High Efficiency QHE 4x32T8/UNV-ISN-SC-1 Normal BF Banded 120/277V Electronic T8 Ballast Used In Refrigerated cases, Walk-in coolers,Etc And Will Operates The Following (4) FO17 24in Fluorescent Lamp (4) FO25 36in Fluorescent Lamp (4) FO32/25W 48in Energy Saving F32T8 25W Lamps (4) FO32/28W 48in Energy Saving F32T8 28W Lamps (4) FO30/SS (48in Energy Saving F32T8 30W Advantage Lamps) (4) F32T8 (48in FO32/ECO 32W Standard Lamps) (4) FBO16,FBO24, FBO29/SS, FBO30/SS, FBO31, FBO32 U-Bend Lamps (3) FO40 60in Fluorescent T8 Lamp     Additional Information: Sylvania Quicktronic High Efficiency T8 Type CC ballasts will operate various 1-4 Lamp combinations ideally suited for applications that could expose lamp and sockets to vibration and potential movement. Additional Benefits Lamp Striation Control, (LSC) General lighting applications where energy saving T8 lamps may striate,particularly for the F25 energy saving T8 lamps   Normal Ballast Factor 0.87 70C Max Case Temperature Lamp Striation Control UL Listed Class P, Type 1 Outdoor Ground ballast case Lampholder must be shorted per diagram High Efficiency Systems over 90% efficient UL Type CC Rated (Commercial Cabinet) -20ºF (-29ºC) min. starting temp. for Octron T8 lamps QHE ballasts also meets the most demanding utility rebate standards Install in accordance with National Electric Codes Complies with FCC 47 CFR Part 18, Non-Consumer ANSI 62.41 Cat. A Transient Protection Class A Sound Rating. Input Frequency: 50/60Hz. Complies with UL935 requirements for “Type CC” rating Minimum starting temperature: 60 F / 16 C with SS lamps Minimum starting temperature: -20 F / -29 C CSA certified. ANSI C82.11 where applicable. NO PCB (Polychlorinated Biphenyl) Remote mounting up to 20 feet Lamp Striation Control (LSC) may minimize F60ºF (16ºC) min. starting temp. for Octron Supersaver 25W,28W,30W lamps Or eliminate lamp striations which can occur in T8 energy savings lamps. Small Can Enclosure Design (Dim:9.47”L x 1.69”W x 1.18”H) Minimum starting temperature: -20 F / -29 C Complies with FCC 47 CFR Part 18, Non-Consumer Normal Ballast Factor < 10% THD Dual Voltage 120-277V 50/60Hz Circuit Type Parallel Meet NEMA Premium Electronic M Ballast Program Requirements and qualify for utility incentives Deliver 30-60% energy savings when D compared to F34T12 magnetically ballasted systems Offer up to 6% (2-5 Watt) energy O savings over standard electronic ballasts Bi-level QUICKSTEP and POWERSENSE Dimming models Excellent for The Most Stringent energy codes and
