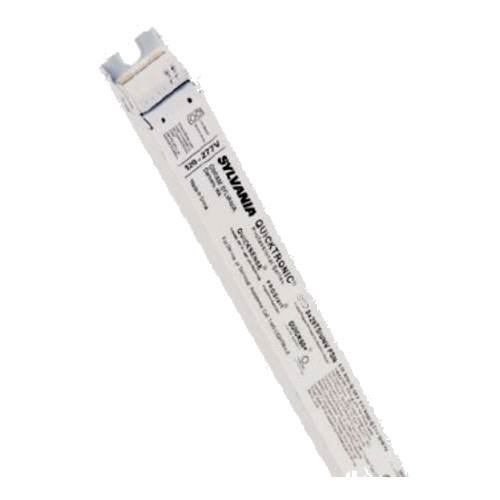

Sylvania 49145 QTP2X54T5/HO 347-480 PSN HT

Description

Sylvania Quicktronic High Ambient QTP2x54T5HOUNV 347V/480V Ballast Operates the Following Lamps: (1-2) F54T5/HO (F54T5HO/Alto,FP54HO/ECO,FQ 54W,F54WT5/ECO) (1-2) FT55DL/2G11(PL-L 55W/4P, FT55DL/ECO, Dulux L 55W/4P) (1-2) FPC55 (FC12T5/HO 55W HO Circular T5 4-Pin) (1-2) L58W T8 Fluorescent Lamps Additional Information: Lead Wires included 90°C Maximum case temp. Min Starting Temp: -20°F 100% Ballast factor Dual Voltage: 347-480V input voltage range, ±10%, 50/60Hz Quicksense ballast technology (end-of-lamp-life sensing) ProStart programmed rapid start   UL type CC rated 0°F (-18°C) Starting Operates at >40 kHz to reduce potential interference with infrared control systems Low harmonic distortion UL, CSA, FCC  RoHS compliant Lead-free solder and manufacturing process Light-weight, Low Profile Housing (16.73″L x 1.18″W x 1.0″H)   Meets ANSI Standard C82.11-1993 Sound Rating A (20-24 decibels) UL Type 1 Outdoor Cross Reference: GE GE254PS347/480-E Universal B254PHRVHB-E Philips Advance HCN-2S54-90C Robertson PSV254T5347 Sylvania Quicktronic High Ambient 347-480V PHO HT Is specifically operation of the ballasts in industrial applications using a 480V AC system. This eliminates the need to rewire existing 480V installations or to drop the voltage by using expensive and bulky transformers.The same product can also be used for 347V
