Philips SmartMate ICF2S42M2LDK

Description

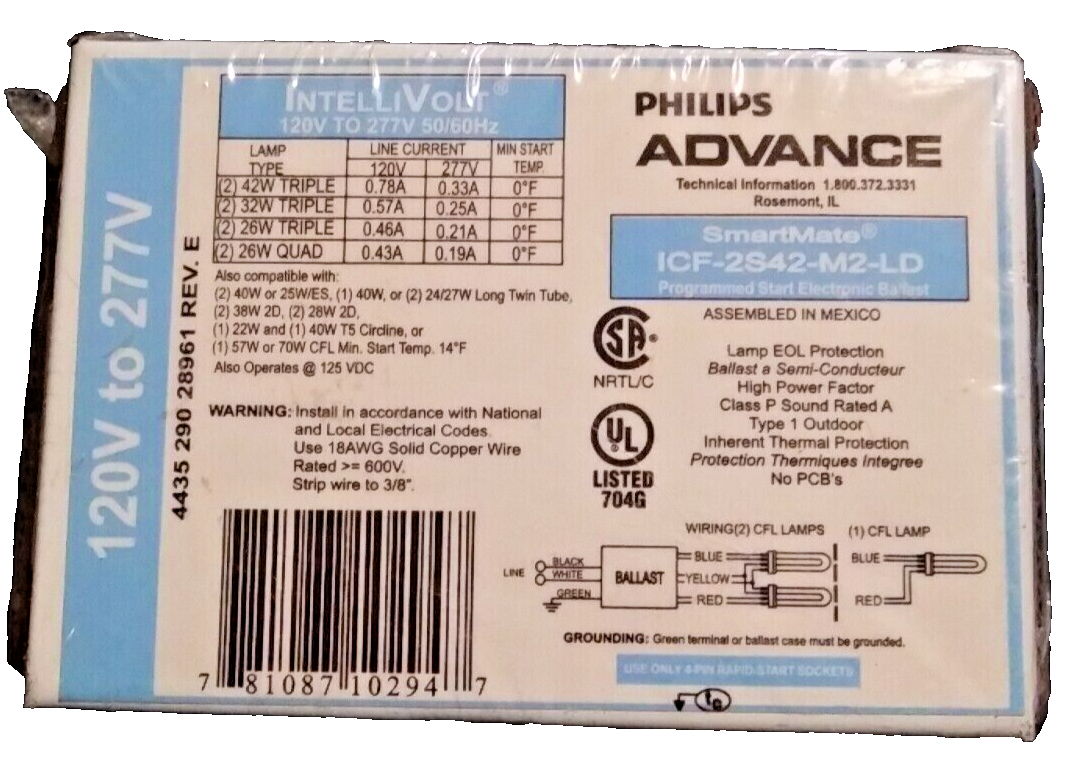

Philips P/N #136977 ICF-2S42-M2-LD 2-Lamp 42W 120/277V Smartmate Programmed Start Electronic Ballast Kit Operate The Following Compact Fluorescent 4-Pin Lamps (1 Or 2 ) CFQ26W/G24q Lamp  (1 or 2 ) CFTR26W/GX24q,Or (Philips PLT-26W,GE F26TBX/4P, Sylvania CF26DT/E)  (1 or 2 ) CFTR32W/GX24q  (1 or 2 ) CFTR42W/GX24q,  (1 ) CFTR57W/GX24q   (1 ) CFTR70W/GX24q   (1 or 2 ) CFS28W/GR10q – 28W 2D Lamp  (1 or 2 ) CFS38W/GR10q – 38W 2D Lamp  (1) FC9T5 22W & FC12T5  Circline Lamps Product Details Includes The Kit Rated Dual Voltage 120-277V 50/60Hz Dual-entry Connector allows ballast to be used with side or bottom exit leads Contains auto restart circuitry in order to restart lamps without resetting power. Ballast shall be Programmed Start except for ballasts With -QS suffix, which shall be Rapid Start. Lamp End-Of-Life (EOL) Protection Circuit Color-coded, poke-in terminals Class A sound rating. Cross Reference: Universal C242UNVSE GE 71441 GEC242-MVPS Sylvania QTP1/2×26/32/42CF/UNV  Howard EP2/42CF/MV/K2 Halco 52108 EP2CF42PS/MV/DC Hatch HC242PS/UV/K Keystone KTEB-242T-UV-TP-PSD
