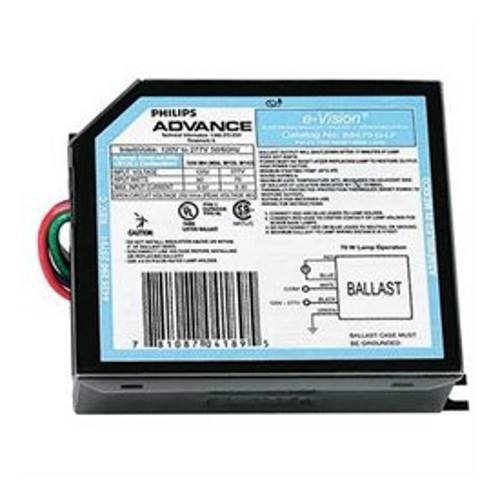

Philips Advance IMH-70-D-BLS

Description

Philips Advance E-Vision IMH70D-BLS 120-277V 1-Lamp 70 Watt Electronic Metal Halide Mini Square Electronic Ballast W/Bottom Exit Leads Catalog No.IMH-70-D-BLS Operates (1) 70W M98 or M143 Lamp  Rated Wattage 79W Max Distance To Lamp 5ft. Minimum Starting Temp. -20ºC/-4ºF  90°C maximum case temperature Dim: 5in (L) x 3in (W) x 1.5in (H)   Superior heat transfer relative to plastic Enhancing safety and durability Meets universal code compliance Rated Voltage: Intellivolt 120V Or 277V (50/60hz) Reduction of lamp overpowering and/or thermal stress by shutting down should the lamp  EOL detection removes power from lamps when they  behave erratically Or fail to ignite  Reach end-of-life, enhancing safety and preventing lamp cycling BLS-Ballast with Bottom exit leads and mounting feet, Leads exit Spec Sheet       INSTALLATION & APPLICATION NOTES: 1. Maximum allowable case temperature is 90°C. 2. Ignition pulse is 4 kV max 3. All leads are 9 inches long 4. Ballast output will shutdown after 20 minutes if lamp fails to ignite 5. Power must be cycled off – then on, after replacing lamp 6. Connect the red lead to the center terminals of the lamp when using   screw base lamps
