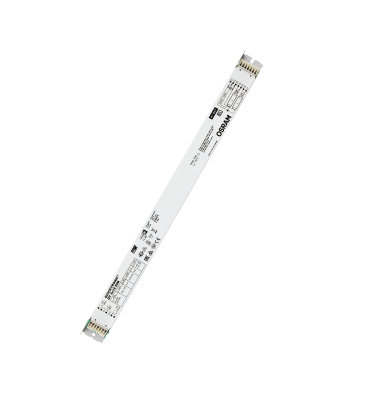

Osram Quicktronic QT 2×18 DIM

Description

Osram Intelligent QT Dimmable 18 Watt 220V 2-Lamp QUICKTRONIC DIM T8 | ECG for FL and CFL, dimmable 1…10 V Electronic Fluorescent Ballast

Operates the Following Lamps:

• 2 x DF 18W, 2 x DL 18W , 2 x L 18W


Additional Information:

• Control via the 1-10 V interface
• Osram Product code: 4050300870960
• Nominal voltage 220-240V
• Mains frequency 50…60 Hz
• DC voltage 176…254 V
• Operating frequency 45…70 kHz ±10%, 50/60Hz
• Dimension (L) 423mm
• UL Type 1 Outdoor
• Supply voltage: 220 – 240 V Line frequency: 0, 50 – 60 Hz Line voltage: 198 – 264 V
• Suitable for use in emergency lighting systems as per EN 50172/DIN VDE 0108-100
• Same luminous flux with direct and alternating current The battery voltage may drop to 154 V.
• Ignition must take place above 198 V Digitally controlled preheating
• Perfect lamp starting for applications with motion sensors, lamp start within 0.6 s
• Optimum preheating in any dimmer setting
• Dimming range: 1 to 100 % luminous flux Very high energy efficiency
