Osram QTP5 1X14-35

Description

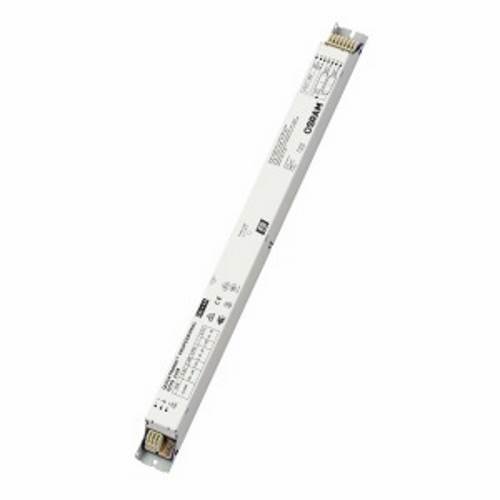

Osram Quicktronic Professional QTP5 1X14-35 14W, 35W Single-Lamp Fluorescent Ballast Operates the Following Lamps: 1 x DL 28 HE, 1 x HE 14, 1 x HE 21,1 x HE 28W, 1 x HE 35W Additional Information: Osram Product code: 4008321329035 Nominal voltage 220-240V Mains frequency 50…60 Hz DC voltage 176…254 V Operating frequency 45…70 kHz ±10%, 50/60Hz Dimension (L) 360mm  UL Type 1 Outdoor Supply voltage: 220 – 240 V Line frequency: 0, 50 – 60 Hz; QT-FQ 2×80: 50…60 Hz Line voltage: 198 – 264 V For use in emergency lighting systems as per EN 50172/DIN VDE 0108-100 Same luminous flux with direct and alternating current The battery voltage may drop to 176 V. Ignition must take place above 185 V Perfect lamp starting for applications with motion sensors, lamp start within 1 Second

Additional information

Weight 2 lbs
Dimensions 1 × 12 × 2 in
