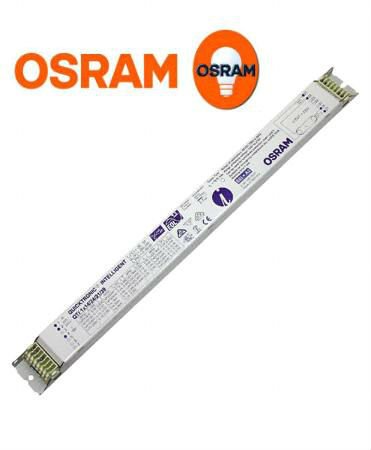

Osram QTi 1×14/24/21/39/220-240

Description

Osram Quicktronic Intelligent QTI 1X14/24/21/39/220-240 1 Lamp Fluorescent Ballast Operates the Following Lamps: 1x 28W HE, 1 x HE 14, 1 x HE 21,1 x HO 24W, 1 x HO 39W Osram Product code: 4050300796871 Nominal voltage 220-240V Mains frequency 50…60 Hz DC voltage 176…254 V Operating frequency 45…70 kHz ±10%, 50/60Hz Dimension (L) 360mm  UL Type 1 Outdoor Additional Information: Optional operation of HO and HE lamps of equal length 50,000 hours lifetime* Preheat start within 1 second Constant light output for UN = 198 V to 264 V Reliable lamp ignition at ta = −20 °C to +50 °C Cut-Off technology Suitable for luminaires of PC I and II EEI = A2 Automatic safety shut down at end of lamp life or in case of failure acc. to EoL T.2 Automatic ignition after lamp replacement Suitable for emergency lighting (DC operation, 0 Hz) CW terminals for manual and robotic wiring * for t = 70 °C at tc; max. failure
