GE 85086 CMH20T/U830-GU6.5

Description

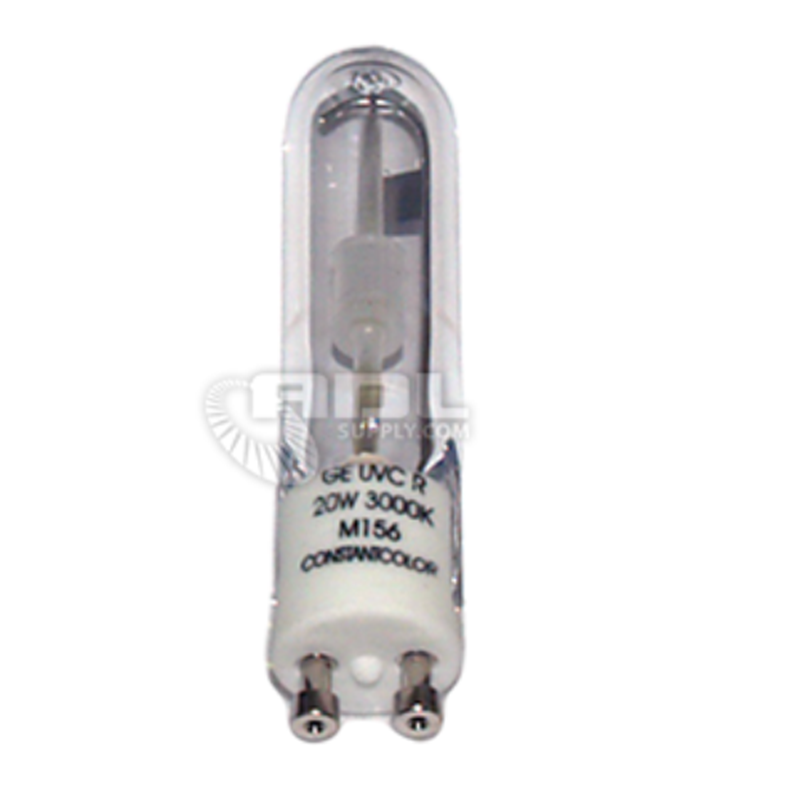

GE Code 85086  Pulsearc CMH20TU830GU6.5 M156 20 Watt M156 3000k GU6.5 Super-Mini Constant Color Ceramic Metal Halide T4 Lamp CRI 81 MOL 52mm LCL 30mm ± 2mm Rated Life 12,000  Lamp Wattage 20W Bulb Designation T4  Color Temp 3000K  (830) Base Type GU6.5 Twist & Lock   Burn Position Universal Initial Lumens 1,615   Max. Base Temp. 250º   Max. Bulb Temp. 400º Overall Length w/ Pins 56.7mm   Fixture Requirement Enclosed Max. Fixture Voltage-Rise 5 Volts Ballast Requirement ANSI M156  Use only with low frequency square wave (LFSW) electronic ballast. Spec Sheet Cross Reference Philips MasterColor CDM-Tm Elite Mini GU6.5 20W/830 1CT Osram HCI-TF 20/830 WDL GU6.5 ILCOS MT/UB-20/30/1B-H/E-GU6.5-13/57 Compatible Ballasts for CHM20TU830GU6.5 63042 GEMH20-MSJ-MV 63043 GEMH20-MSF-MV Additional Information Highly efficient Reduce energy costs by up to $92.00 per lamp* when using a 39-watt CMH® (Requires new fixture to replace a 120 watt halogen) 4 times more lumens per watt than comparable incandescent or halogen lamps Twist and Lock Base Design Provides secure alignment Easy installation Robust base Reduces annoying pin degradation Color uniformity lamp-to-lamp ConstantColor CMH-GU6.5 lamps provide a consistent “white look” for color-critical applications such as retail display Excellent color rendering Up to 90 CRI for setting the desired look for the application. Long life Up to 12,000 hour rated life provides for extended relamp cycles and reduced maintenance costs Point source of light Compact quartz envelope allows for terrific fixture optics to maximize system efficiency Replacement 20W M156 Ballast & GU6.5 Sockets Available R Warning: This lamp can cause serious skin burn and eye inflammation from shortwave ultraviolet radiation if outer envelope of the lamp is broken or punctured, and the arc tube continues to operate. Do not use where people will remain for more than a few minutes unless adequate shielding or other safety precautions are used. Certain types of lamps that will automatically extinguish when the outer envelope is broken or punctured are commercially available.
