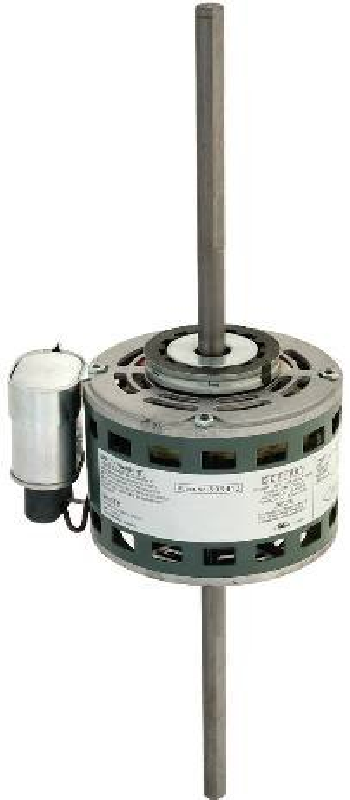

Garrison 593413 Direct Drive Blower Two Speed 1/4HP

Description

Double Shaft Blower Motor 1625 230V     HP:1/4 RPM: 1625 Speeds: 2 Rotation: CCWLE Capacitor MFD: 5 Volts: 208-230 Full load amps: 1.5 Frame: 42 Body length (inches): 3-9/16 Motor overall length (inches): 18-15/16 Shaft length inches): 7-11/16 Motor diameter: 5″ Weight (lbs.): 12.3 Installs with all standard 48 frame mounting brackets. Standard shaft length, diameter, and flats. Automatic thermal overload protector. Uses standard 370V capacitors. 2.5″ dia. hub rings included. UL recognized thermal protection. Standard motor casing size. Low power consumption. Electrically reversible, continuous duty air over, class B insulation, quiet operation, 60Hz. 1 year warranty
