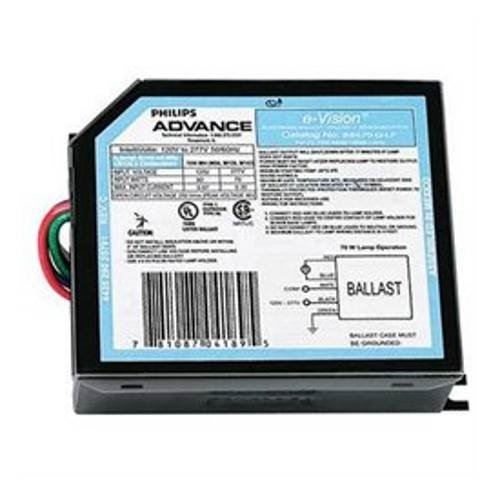

Advance IMH-39-A-BLS-ID

Description

Philips Advance Catalog Number: IMH39ABLSID 1-Lamp 39W C130/M130 120-277V 50/60Hz e-Vision Electronic Metal Halide Ballast Rated Voltage: Intellivolt 120-277Volt (50/60hz)  Max Distance To Lamp 5ft. Operates (1)  39W Ceramic Metal Halide Lamp Ansi Code C130 Or M130 Rated Wattage 39W  Minimum Starting Temp. -20ºC/-4ºF  90°C maximum case temperature *BLS* Ballast with Bottom Leads with Studs A/B = Metal case with Dim: 5.5in (L) x 3.6in (W) x 1.5in (H) Additional Information: Ballast will not operate if Insulation Detector is Absent, Shorted or Failed Open Maximum allowable case temperature is 90°C.   Ignition pulse is 4 kV max All leads are 12 inches long Ballast output will shutdown after 20 minutes if lamp fails to ignite Power must be cycled off – then on, after replacing lamp Use with any Self Heating Thermal Protector (Insulation Detector) having equivalent resistive value 5k to 25k ohm (4 wire versions only) Open Circuit voltage across ID output approx 270VDC
