Description

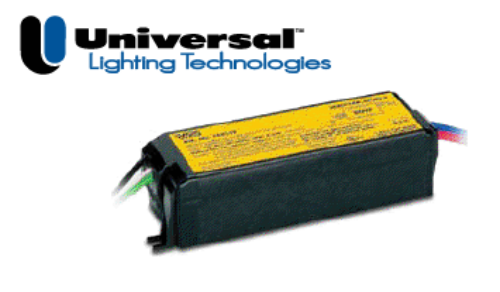

Universal 20W Metal Halide M156 1-Lamp Electronic 120V Mini Slim Case Ballast (1) 20W Ceramic Metal Halide Lamp Ansi Code M156/C156 Voltage : 120V, +/-10%, 50/60Hz Microprocessor controlled DIM: (L) 5.51in (W) 1.74in x (H)1.18in Feet mount (Side lead exit) Universal Order Code 188152.02 5-Lead Wires( Black, White, Green,Blue, Red) This Ballast has discontinued and replace by Universal #188882.02 M2012CK-7EUN-F RoHS Compliant Spec Sheet Additional Information Energy Efficient Greater than 20% increase in efficiency Lowers lighting operation costs Full Light Output Provides same light levels as magnetic ballasts being replaced Quiet Operation Significantly quieter than magnetic ballasts High Frequency Operation No lamp flickering Light Weight – Low Profile Case Simplifies transportation & installation Less interference with ballast channel cover during replacement Slimline Ballasts Feature Parallel Lamp Operation When one lamp fails, other lamp remains lit Instant start electronic ballast for long lamp starting cycles and low initial cost RoHs Compliant UL Type 1 Outdoor Cross Reference Aromat M2012CK-6EUN-F Hatch MC20-1-F-120V Metrolight M20MH-UX-C Sylvania QT1x20MH 120V SLIM
