Description

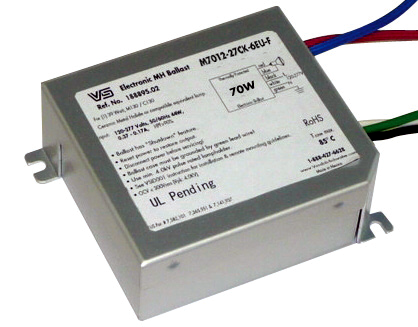

Universal Standard Size 70W 120-277V Metal Halide Electronic Feet Mount Ballast Product Details (1) 70W Ceramic Metal Halide Lamp Ansi Code M98,M139, or M143 Voltage : 120-277V +/-10%, 50/60Hz Resonance Start Active power factor correction Microprocessor controlled EOL Protection DIM: (L) 5.51in (W) 3.62in x (H) 1.57in Feet mount (Side lead exit) Universal Order Code 188939.02 5-Lead Wires( Black, White, Green,Blue, Red) RoHS Compliant Spec Sheet Additional Information Energy Efficient Greater than 20% increase in efficiency Lowers lighting operation costs Full Light Output Provides same light levels as magnetic ballasts being replaced Quiet Operation Significantly quieter than magnetic ballasts High Frequency Operation No lamp flickering Light Weight – Low Profile Case Simplifies transportation & installation Less interference with ballast channel cover during replacement Slimline Ballasts Feature Parallel Lamp Operation When one lamp fails, other lamp remains lit Instant start electronic ballast for long lamp starting cycles and low initial cost RoHs Compliant UL Type 1 Outdoor
