Description

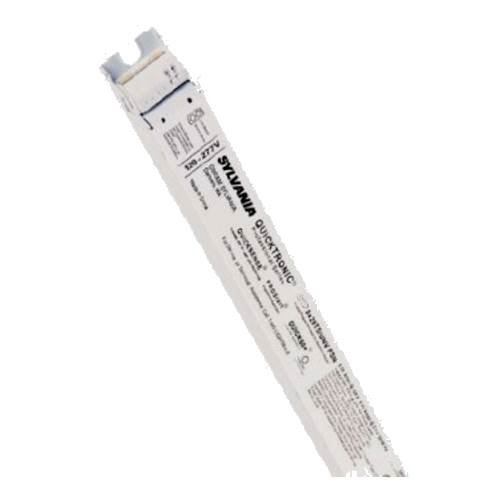

Sylvania Quicktronic High Effiency QTP 1x14T5/UNV DALI Normal Ballast Factor 120/277V Fluorescent T5 Ballast Operates the Following Fluorescent Lamps: (1) FP14T5 Fluorescent Lamp (1) FP14T5HO Fluorescent Lamp Ballast Factor 1.00 Additional Information: 70C Max Case Temperature UL Listed Class P, Type 1 Outdoor Ground ballast case Lampholder must be shorted per diagram Install in accordance with National Electric Codes Complies with FCC 47 CFR Part 18, Non-Consumer ANSI 62.41 Cat. A Transient Protection Class A Sound Rating. Input Frequency: 50/60Hz. Complies with UL935 requirements for “Type CC” rating Minimum starting temperature: 60 F / 16 C with SS lamps Minimum starting temperature: -20 F / -29 C CSA certified. ANSI C82.11 where applicable. NO PCB (Polychlorinated Biphenyl) Remote mounting up to 20 feet Lamp Striation Control (LSC) may minimize Or eliminate lamp striations which can occur in T8 energy savings lamps. Small Can Enclosure Design (Dim:9.47”L x 1.69”W x 1.18”H) Minimum starting temperature: -20 F / -29 C Complies with FCC 47 CFR Part 18, Non-Consumer Normal Ballast Factor < 10% THD Dual Voltage 120-277V 50/60Hz Circuit Type Parallel Meet NEMA Premium Electronic M Ballast Program Requirements and qualify for utility incentives Deliver 30-60% energy savings when D compared to F34T12 magnetically ballasted systems Offer up to 6% (2-5 Watt) energy O savings over standard electronic ballasts Achieve over A 100 (LPW) with OCTRON® 800 XP® SUPERSAVER® lamps Available in: A – Instant Start and PROStart® (Programmed Rapid Start) Bi-level QUICKSTEP® and POWERSENSE® Dimming models Excellent for The Most Stringent energy codes and sustainability focused projects Cross Reference: Universal B232IUNVEL-A GE-232-MAX-L/ULTRA Advance IOP-2P32-LW-SC Keystone KTEB-232-UV-IS-L-P
